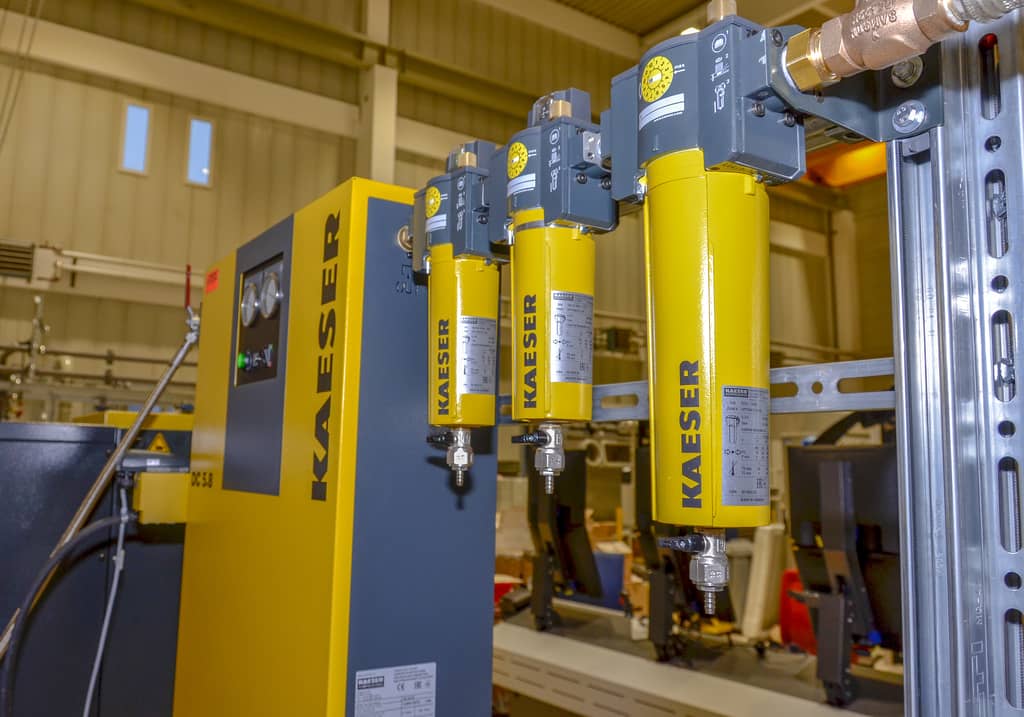

Breathing Air Supply System
A silent screw compressor and a set of filters and dryers provides breathing air quality according to international standards.
SCAGV
Software-Controlled Anti-G Valve
All military aircraft that create high sustained G-loads have an anti-G valve and a valve for breathing air supply. The valves control the inflation of the anti-G suit and support Positive Pressure Breathing (PPB).
Needs
The anti-G valves protect the pilot from the effects of high G-loads, e.g. possible G-LOC. Depending on the current G-load, the valves control the pressure in the anti-G suit and provide overpressure to the mask for forced breathing.
- All high performance aircraft capable of creating high-G must be equipped with an anti-G protection system. Without such a system, the pilots are not able to sustain high G-loads from modern fighter aircraft.
- The aircraft industry provides such anti-G systems in form of hardware-controlled valves. These react on aircraft-induced G-loads and have a fixed pressure versus Gz load characteristic.
- The AMST software controlled anti-G system represents an alternative to such standard aircraft anti-G systems for use in human centrifuges or other earth-based simulators.

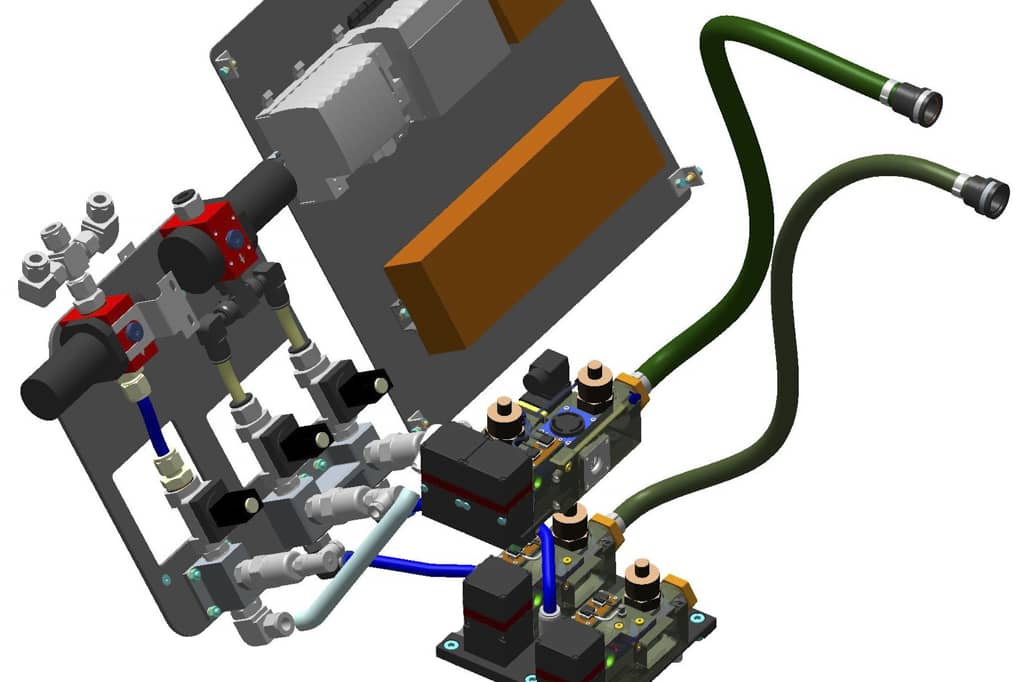

Benefits
The Software-Controlled Anti-G Valve enables simulator manufacturers to equip their simulators with an anti-G protection system. Through its highly flexible design, the system can be adjusted to the characteristics of aircraft type.
- It can be used as a standard AGV or AGV including Positive Pressure Breathing (PPB)
- Has proven safety features to prevent overpressure to the pilot and his equipment
- Gives the user the advantage of different pressure curve settings for different suits or research
- Is available for simulator manufacturers whilst original anti-G valves are ITAR-regulated aircraft equipment and hardly available for use in simulators
- Requires no ITAR approval because as only standard industrial components are used
Features
The SCAGV is a highly flexbile and cost-efficient solution

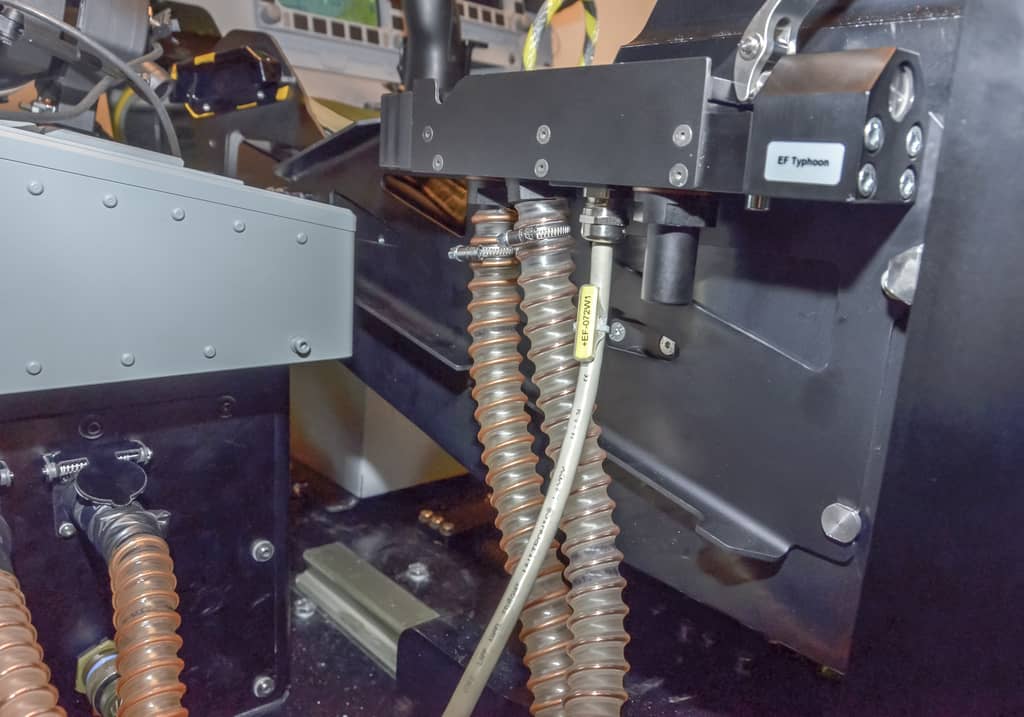

Seat Portion/PEC
Different seat portions are available for aircraft such as Eurofighter Typhoon, F-35 Lightning, Hawk T2 and others on request.

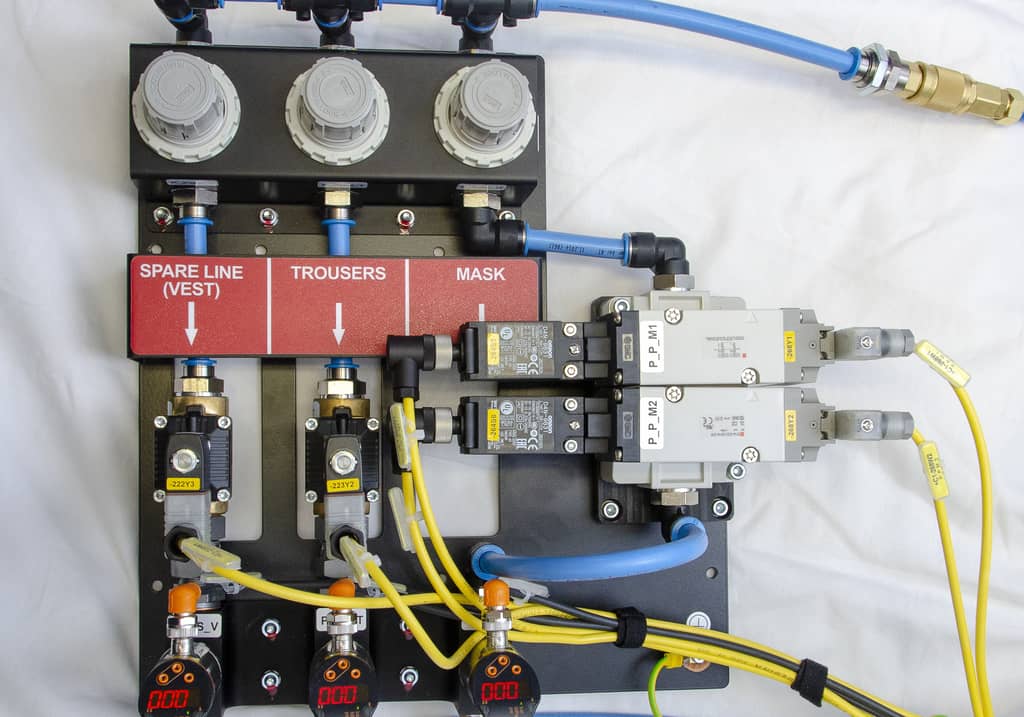

Pressure Supply Panel
Each supply line consists of a pressure reduction valve, a shut-off valve and a pressure sensor. The pressure supply panel is used for safety shut-off in case of unintended overpressure or underpressure in the compressed air supply.

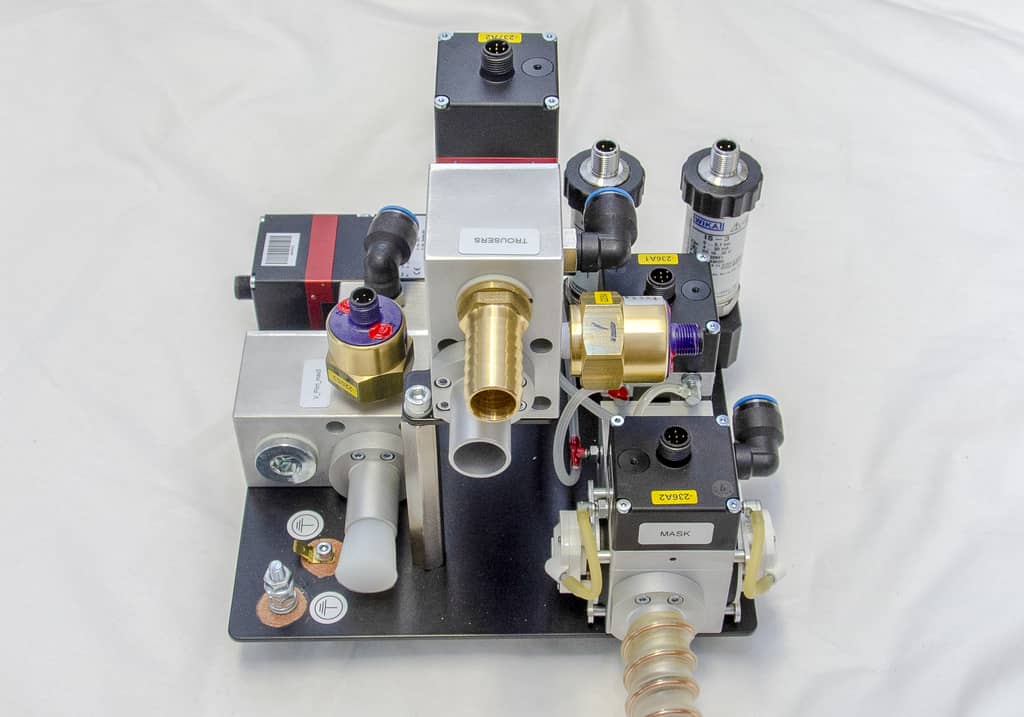

Pressure Regulator Block
The AMST SCAGV provides 3 pressure lines:
- Trousers
- Mask
- Spare (can be used for future helmet venting)

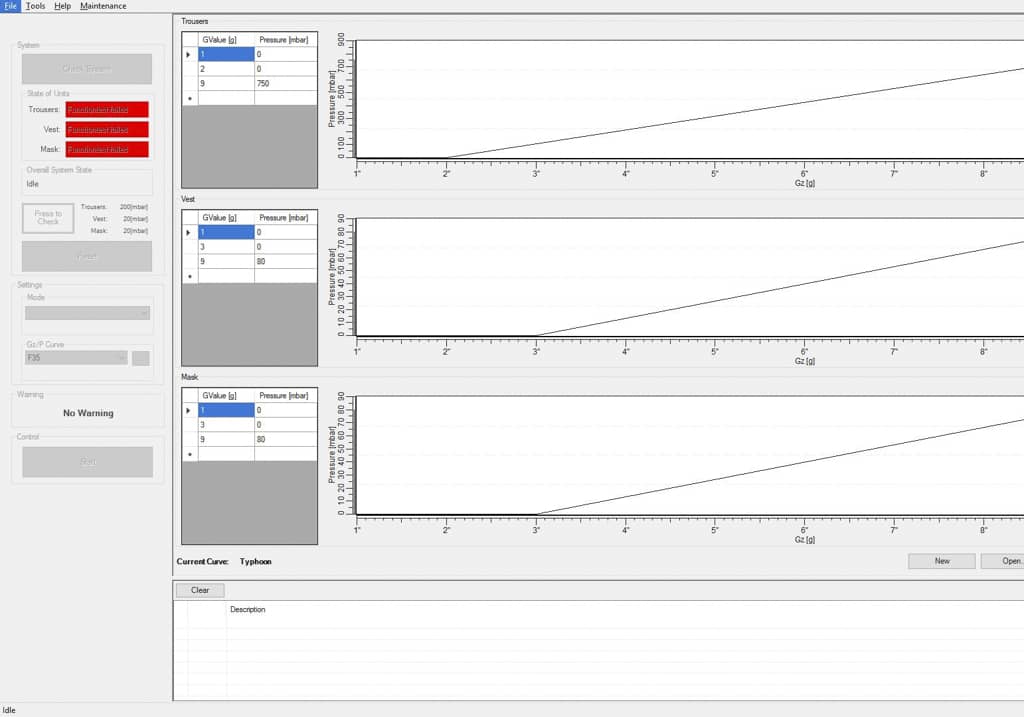

Graphical User Interface – GUI
In the GUI the operator can preselect the cut-in point, the pressure vs Gz curve, and the ratio between trousers, mask and spare.

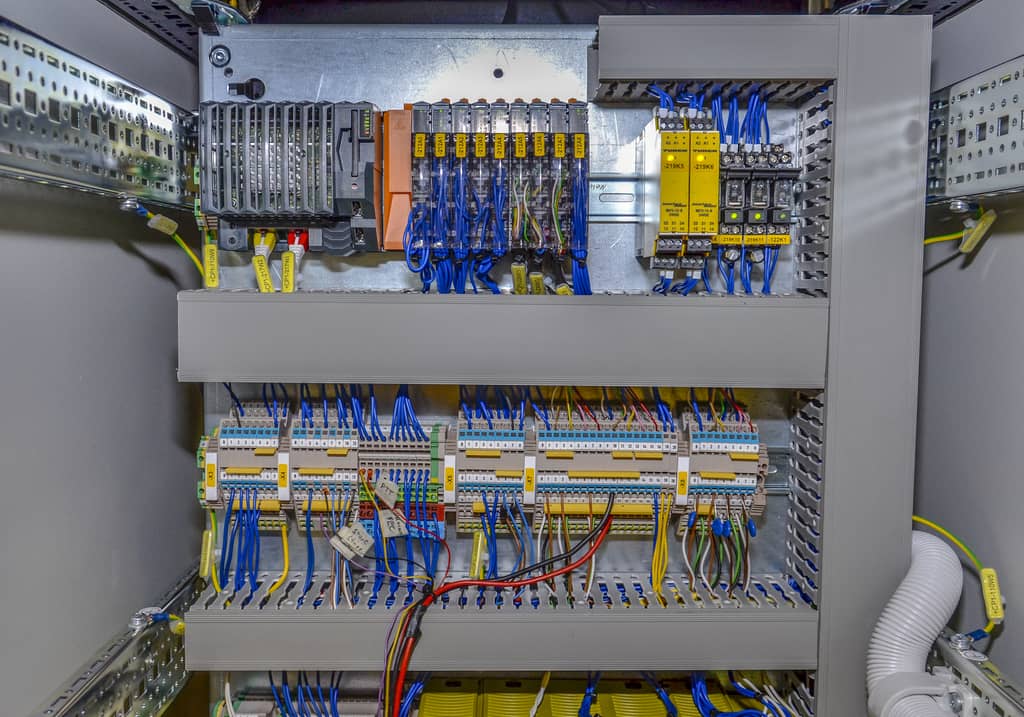

Control System
A Programmable Logic Controller (PLC) is installed for real-time control of the pressure regulators, for several checks such as operating reliability and for the redundant safety system.

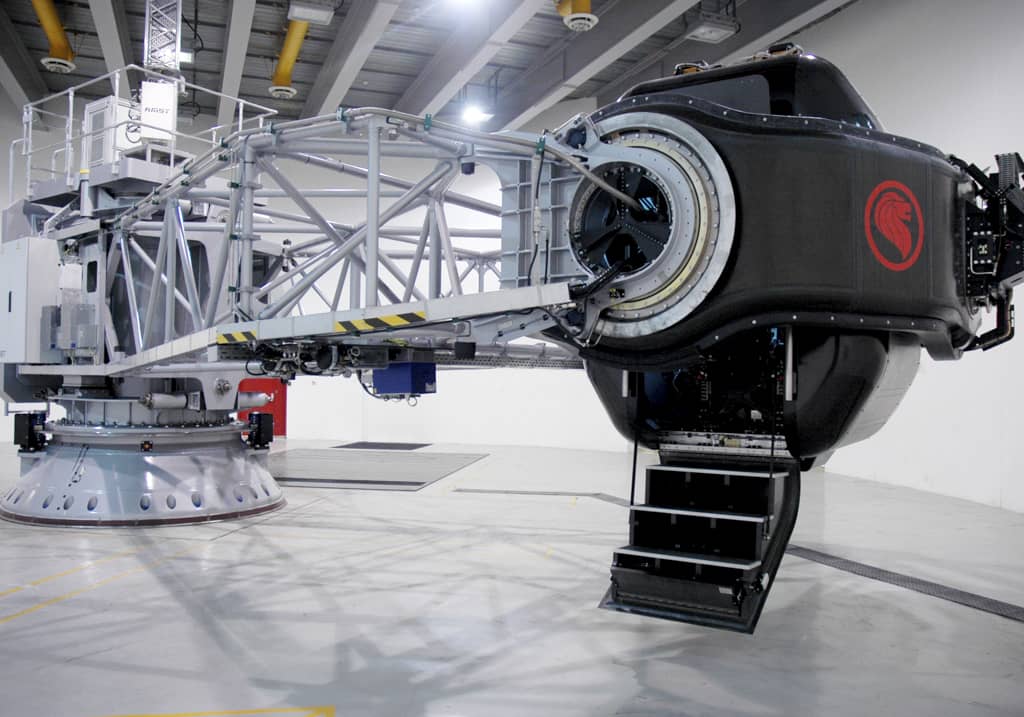

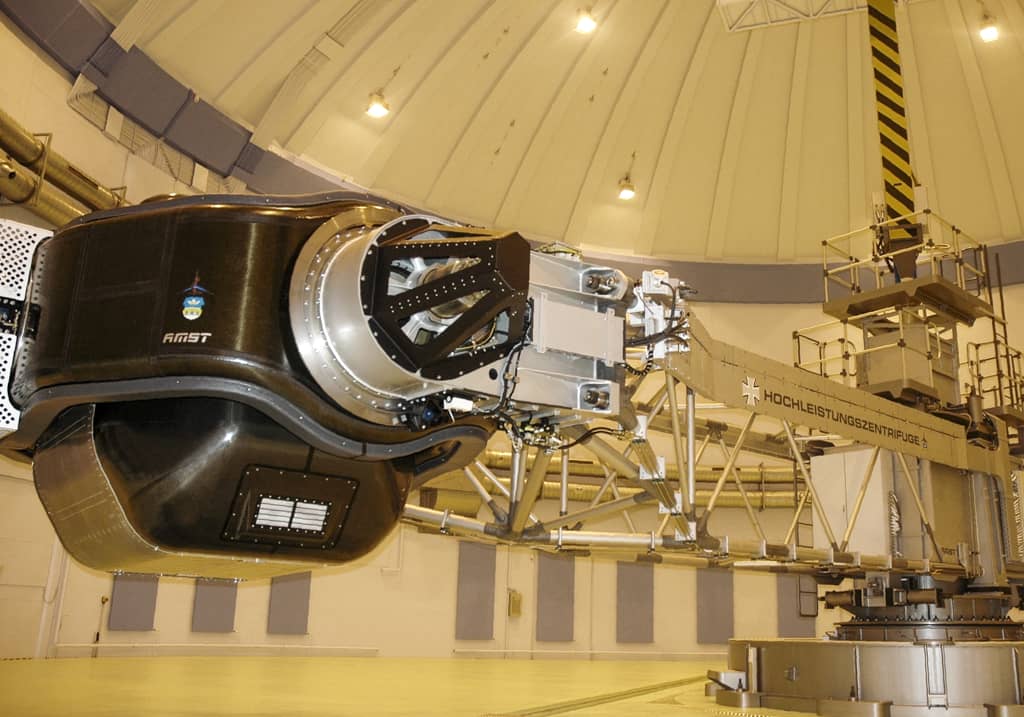

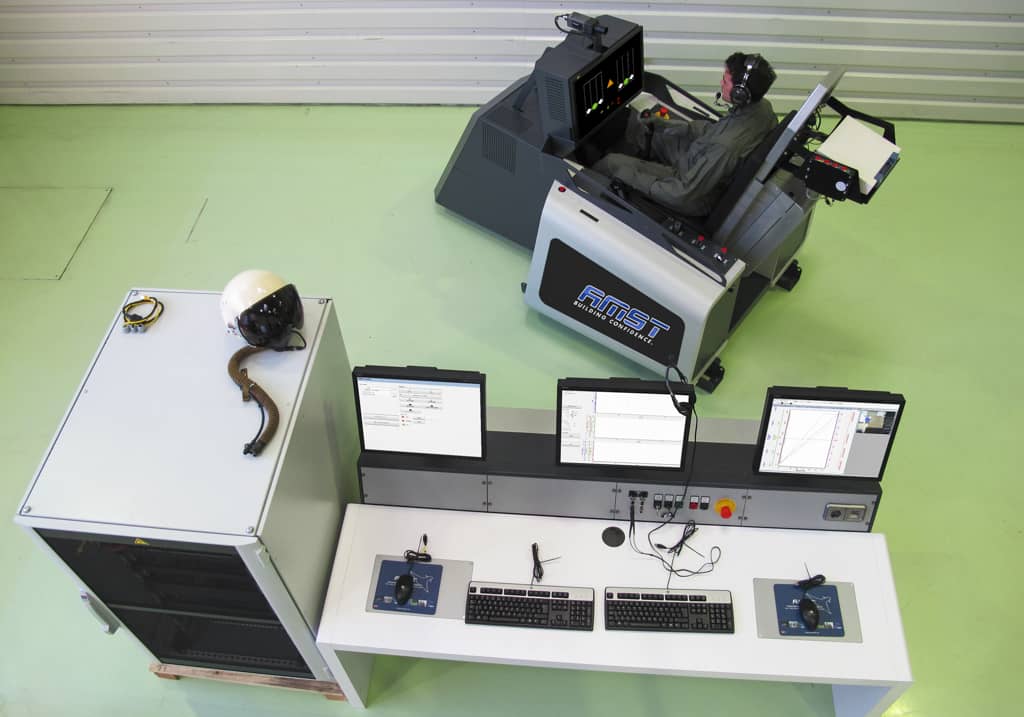

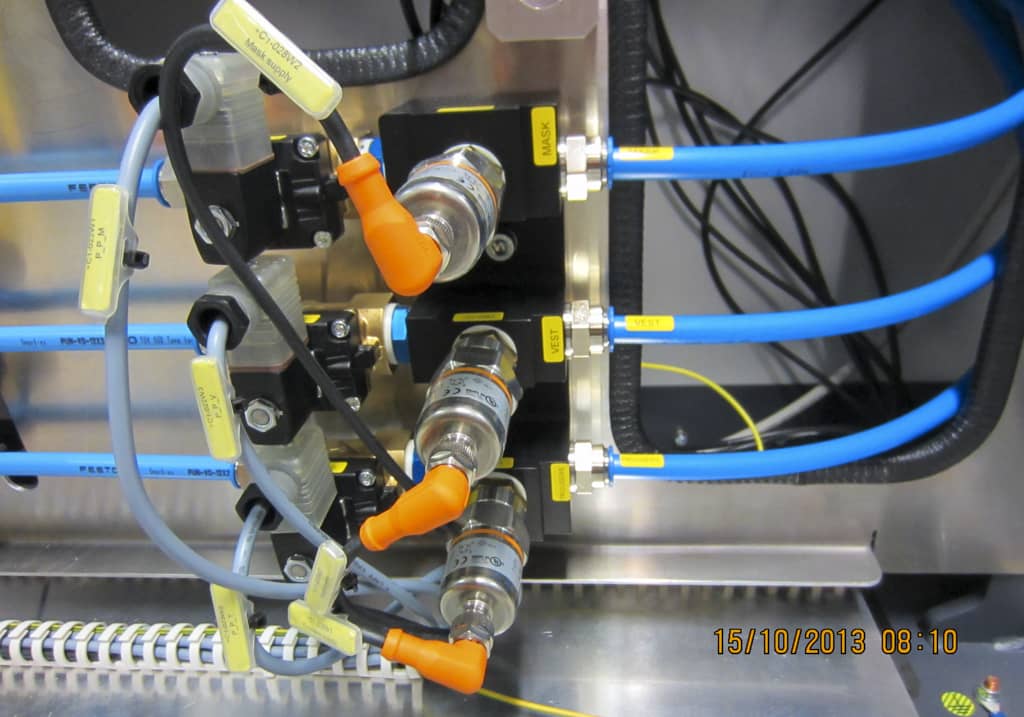

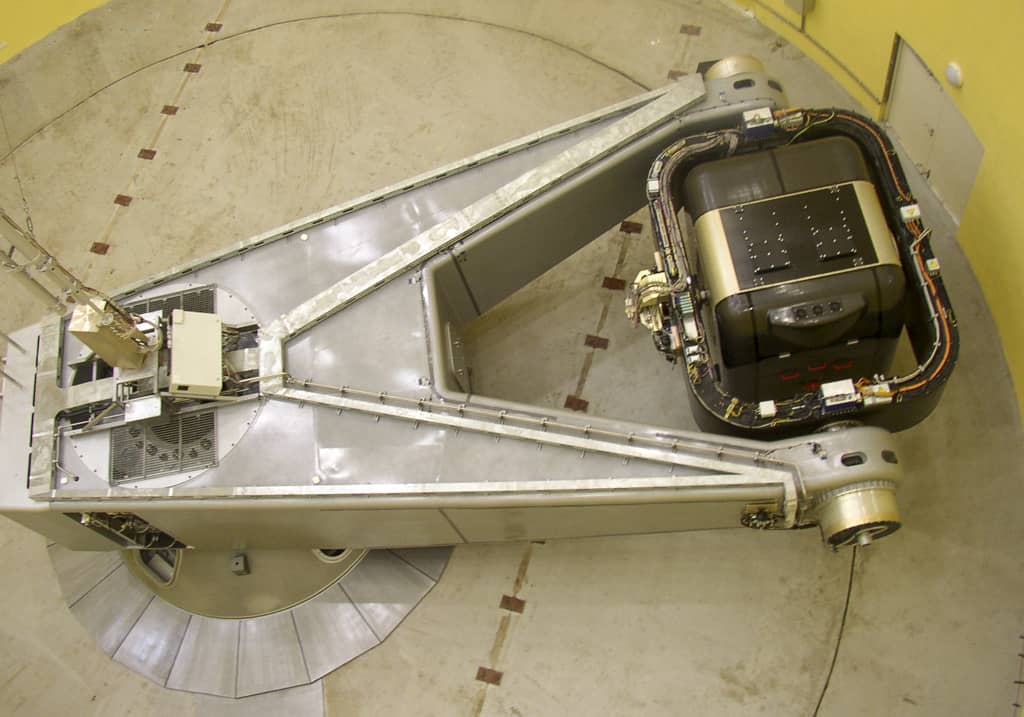

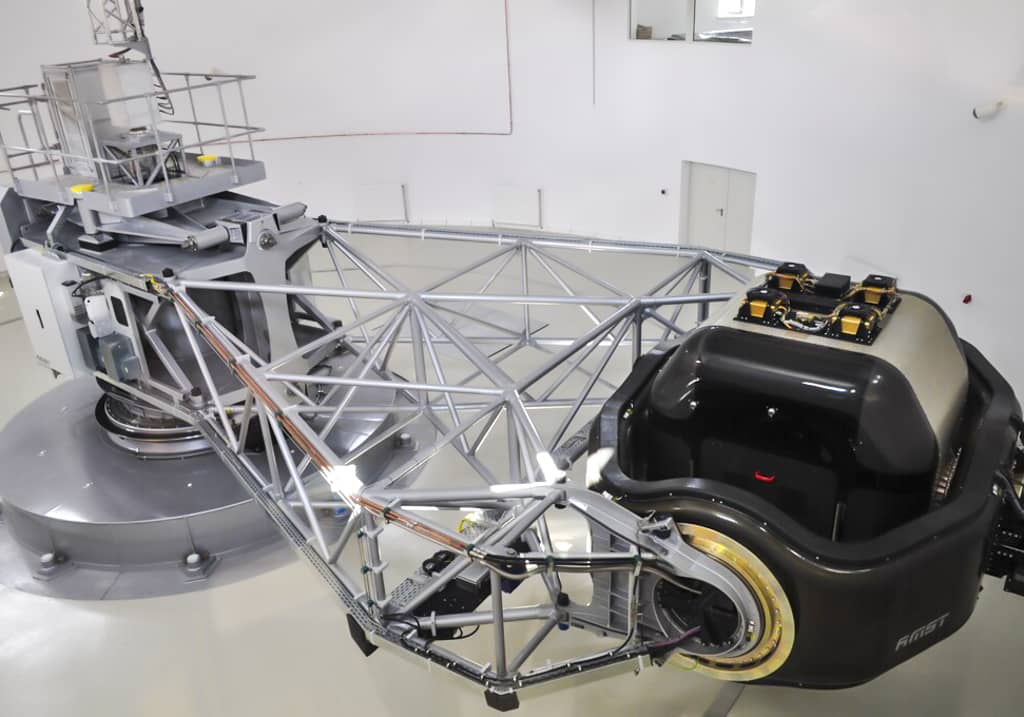

References
